Python library for SBGN

Matthias König

Humboldt-University Berlin, Faculty of Life Science, Systems Medicine of Liver
https://livermetabolism.com

2025-04-15

SBGN

• Systems Biology Graphical Notation
• Standardise graphical notation used in maps of biological processes
• Process Description (PD): temporal courses of biochemical interactions in a network
• Entity Relationship (ER): all relationships between participates, regardless of the temporal aspects
• Activity Flow (AF): flow of information between biochemical entities in a network

libsbgnpy

• Python library for SBGN
• Supports AF, PD, ER
• Supports libsbgn/0.3
• new: support for render extension
• new: python dataclasses with type annotations
• new: py3.12, py3.13 support
• new: more and better documentation: https://matthiaskoenig.github.io/libsbgnpy/

1. Create map

"""Ethanol example."""
# create new map
map = Map(
    language=MapLanguage.PROCESS_DESCRIPTION,
    bbox=Bbox(x=0, y=0, w=363, h=253),
)
# add map to new sbgn
sbgn = Sbgn(map=[map])

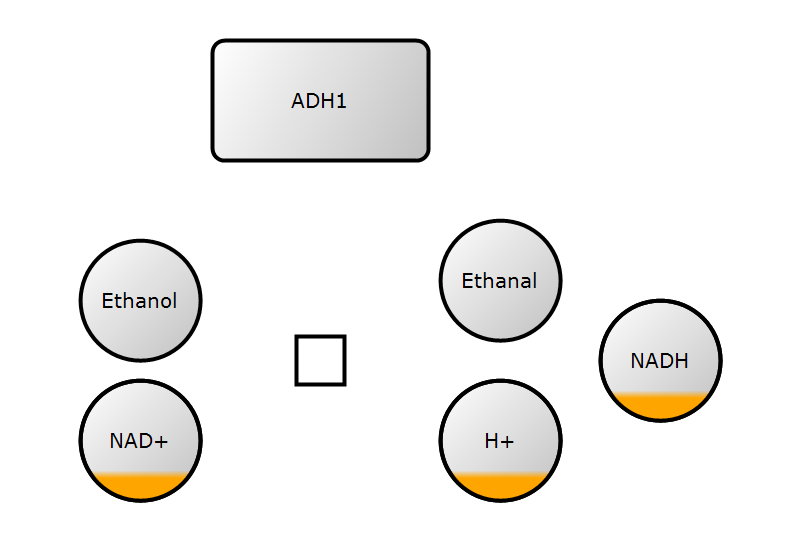

2. Add glyphs

"""Ethanol example."""
map.glyph.extend([
    Glyph(
        class_value=GlyphClass.SIMPLE_CHEMICAL,
        id="ethanol",
        label=Label(text="Ethanol"),
        bbox=Bbox(x=40, y=120, w=60, h=60),
    ),
    Glyph(
        class_value=GlyphClass.SIMPLE_CHEMICAL,
        id="ethanal",
        label=Label(text="Ethanal"),
        bbox=Bbox(x=220, y=110, w=60, h=60),
    ),
    Glyph(
        class_value=GlyphClass.MACROMOLECULE,
        id="adh1",
        label=Label(text="ADH1"),
        bbox=Bbox(x=106, y=20, w=108, h=60),
    ),
    Glyph(
        class_value=GlyphClass.SIMPLE_CHEMICAL,
        id="h",
        label=Label(text="H+"),
        bbox=Bbox(x=220, y=190, w=60, h=60),
        clone=Glyph.Clone(),
    ),
    Glyph(
        class_value=GlyphClass.SIMPLE_CHEMICAL,
        id="nad",
        label=Label(text="NAD+"),
        bbox=Bbox(x=40, y=190, w=60, h=60),
        clone=Glyph.Clone(),
    ),
    Glyph(
        class_value=GlyphClass.SIMPLE_CHEMICAL,
        id="glyph_nadh",
        label=Label(text="NADH"),
        bbox=Bbox(x=300, y=150, w=60, h=60),
        clone=Glyph.Clone(),
    ),
    # glyph with ports (process)
    Glyph(
        class_value=GlyphClass.PROCESS,
        id="pn1",
        orientation=GlyphOrientation.HORIZONTAL,
        bbox=Bbox(x=148, y=168, w=24, h=24),
        port=[
            Port(x=136, y=180, id="pn1.1"),
            Port(x=184, y=180, id="pn1.2"),
        ],
    ),
])

2. Add glyphs

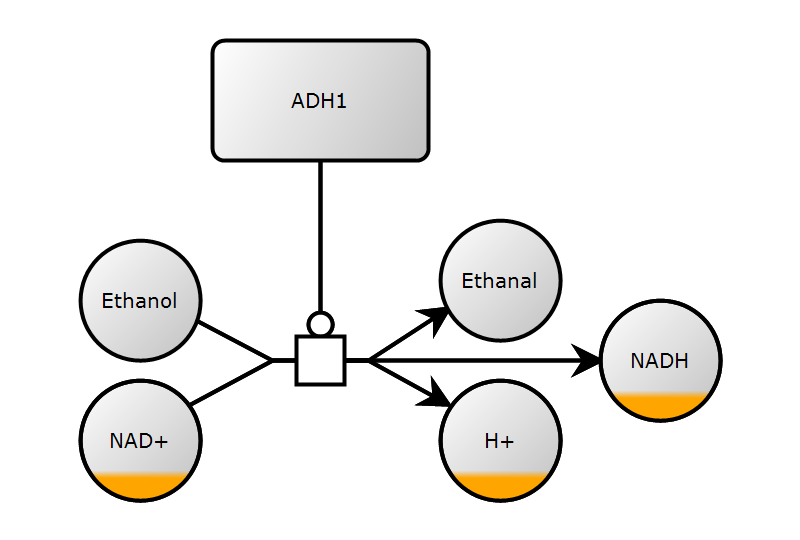

3. Add arcs

"""Ethanol example."""
# create arcs and set the start and end points
map.arc.extend(
    [
        Arc(
            id="a01",
            class_value=ArcClass.CONSUMPTION,
            source="ethanol",
            target="pn1.1",
            start=Arc.Start(x=98, y=160),
            end=Arc.End(x=136, y=180),
        ),
        Arc(
            id="a02",
            class_value=ArcClass.PRODUCTION,
            source="pn1.2",
            target="nadh",
            start=Arc.Start(x=184, y=180),
            end=Arc.End(x=300, y=180),
        ),
        Arc(
            id="a03",
            class_value=ArcClass.CATALYSIS,
            source="adh1",
            target="pn1",
            start=Arc.Start(x=160, y=80),
            end=Arc.End(x=160, y=168),
        ),
        Arc(
            id="a04",
            class_value=ArcClass.PRODUCTION,
            source="pn1.2",
            target="h",
            start=Arc.Start(x=184, y=180),
            end=Arc.End(x=224, y=202),
        ),
        Arc(
            id="a05",
            class_value=ArcClass.PRODUCTION,
            source="pn1.2",
            target="ethanal",
            start=Arc.Start(x=184, y=180),
            end=Arc.End(x=224, y=154),
        ),
        Arc(
            id="a06",
            class_value=ArcClass.CONSUMPTION,
            source="nad",
            target="pn1.1",
            start=Arc.Start(x=95, y=202),
            end=Arc.End(x=136, y=180),
        ),
    ]
)

3. Add arcs

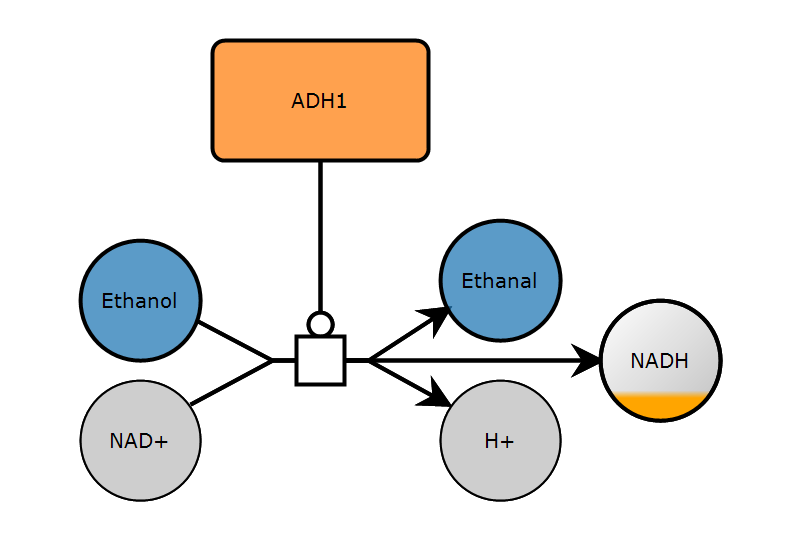

4. Add render information

render_info = RenderInformation(
    id="ethanol_render_info",
    program_name="libsbgnpy",
    program_version="0.4.0",
    list_of_color_definitions=ListOfColorDefinitions(
        color_definition=[
            ColorDefinition(id="blue", value="#1f77b4bb"),
            ColorDefinition(id="orange", value="#ff7f0ebb"),
            ColorDefinition(id="white", value="#000000"),
            ColorDefinition(id="grey", value="#cccccccc"),
            ColorDefinition(id="black", value="#ffffff"),
        ]
    ),
    list_of_gradient_definitions=ListOfGradientDefinitions(),
    list_of_styles=ListOfStyles(
        [
            Style(
                id_list="ethanol ethanal",
                g=G(stroke="black", stroke_width=2, fill="blue"),
            ),
            Style(
                id_list="adh1",
                g=G(stroke="black", stroke_width=2, fill="orange"),
            ),
            Style(
                id_list="nad nadh h",
                g=G(stroke="black", stroke_width=1, fill="grey"),
            ),
        ]
    ),
)

5. Save and render

# serialize to string
xml_str: str =  write_sbgn_to_string(sbgn)

# serialize to file
write_sbgn_to_file(sbgn, "ethanol_example.sbgn")

# render SBGN
render_sbgn(sbgn, "ethanol_example.png")

6. Use other tools in the workflow

SBGN maps can be further modified in additional tools such as Newt: Ethanol Example Newt

Want to know more

libsbgnpy documentation
